Ginger-DVK WPS530MRH
¥1,000.00

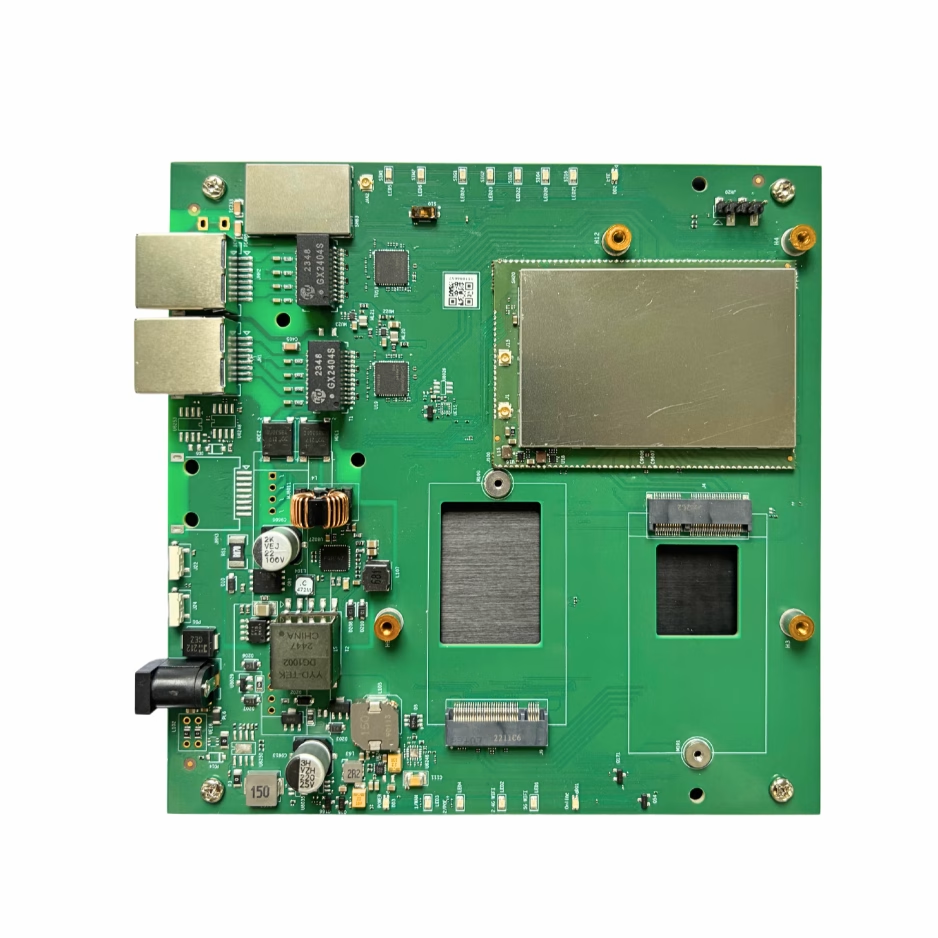

IPQ5322 WiFi 7 (802.11be) 2×2 MU-MIMO Embedded Board
- Qualcomm IPQ5322 Quad-Core Cortex-A53 1.5GHz processor ‘Miami’ series
- 1GB, DDR4 16-bit (1×16-bit) interface
- 16GB EMMC
- 1x M.2 E Key socket with PCIe 3.0, 1x M.2 B Key socket with PCIe 3.0
- Concurrent Tri-Band Wi-Fi 7 and 5G cellular/LTE support
- -20ºC to 70ºC operating temperature
- 142mm × 142mm × 21mm (W x H x D)
Description
Wireless
| Wireless | On-board 2×2 2.4GHz MU-MIMO 802.11b/g/n/ax/be, max 22dBm per chain 2x U.FL connectors |
| 2.4GHz | 2×2 on-board 2.4GHz radio, up to 688Mbps physical data rate. |
| Frequency Range | 2.412~2.472GHz |
Power
| Power Consumption (Board Only) | 11.3W |
| DC Jack Input | 12v |
Certification
| Country | Certification |
| USA | REACH Compliance |
| EU | RoHS Compliance |
