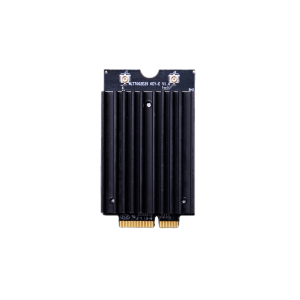

WLTE7000E2

Description

WLTE7000E2 is a Single-Band 2.4GHz WiFi 7 (802.11be) module based on Qualcomm’s QCN6224 or QCN9274  ‘Waikiki’ series radio solution. This is a 4T4R (4×4) MU-MIMO 2.4GHz solution and is available in both commercial grade (QCN6224) and industrial grade (QCN9274).With 4 spatial streams, WLTE7000E2.4 is capable of achieving up to 1.376Gbps.

WLTE7000E2 can deliver up to 20dBm per chain. It is capable of doing both AP and STA mode, in this case, doing backhaul and providing connectivity for clients at the same time. Based on a 3.3V design,  WLTE7000E2 ensures that the signal coverage is as wide as possible, in exchange for consuming slightly more power than a conventional WiFi module. WLTE7000E2 is suitable for customers who require their product to provide wide signal coverage.

With up to 4096-QAMs, WLTE7000E2’s OFDMA feature is a perfect solution for Enterprise, Industrial, Cybersecurity, Transportation, and SMB applications or appliances. Multi-link operation (MLO) support reduces latency and helps to aggregate throughput, depending on device setup. Preamble puncturing supported by WLTE7000E2 improves spectral efficiency by allowing a WiFi 7 access point (AP) to transmit a “punctured” portion of the spectrum channel if some of the channels are being used by legacy users. FIPS L2 is available as a unique feature on QCN9274, for customers who care most about the cryptographic protection of their product. Furthermore, with Compex acting as a value-added manufacturer, WLTE700E2 is not restricted to working just on Qualcomm’s ecosystem but also on 3rd party platforms such as Intel x86 and other ARM processors such as NXP and Marvell.

Standard

Wireless

Power

Environmental Compliances
