WPQ873
¥1,000.00

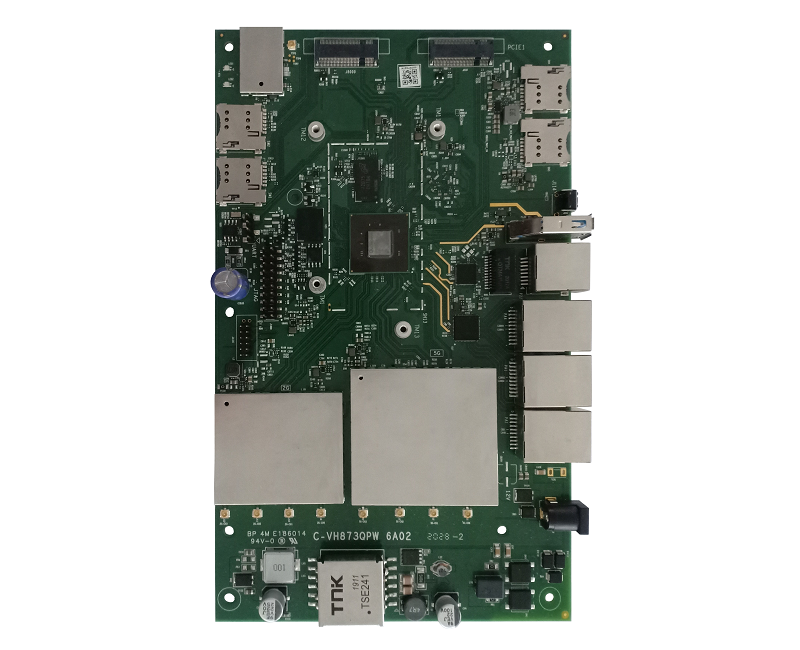

IPQ8072A WiFi 6 (802.11ax) Supporting 5G Cellular Modem Embedded Board
- Qualcomm Atheros IPQ8072A Quad-core ARM 64 bit A53 2.2GHz processor ‘Hawkeye’ series
- 512MB DDR4 16-bit interface
- 256MB NAND flash, 8MB NOR flash
- 1x M.2 B Key socket with PCIe 3.0, 1x M.2 B Key socket with USB 3.0 and PCIe 2.0
- 3x 1Gbps ethernet ports, 1x 2.5Gbps ethernet port
- 1x USB 3.0 port, 4x SIM card slots
- -20ºC to 70ºC operating temperature
- 128mm x 255mm x 36.8mm (W x H x D)
Description
Wireless
| Wireless | On-board 4×4 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 17dBm per chain On-board 4×4 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 17dBm per chain 8x U.FL connectors |
| 2.4GHz | 4×4 on-board 2.4GHz radio, up to 1182Mbps physical data rate |
| 5GHz | 4×4 on-board 5GHz radio, up to 2475Mbps physical data rate |
| Frequency Range | 2.412~2.472GHz, 5.150~5.825GHz |
| Bluetooth | QCA4024 BLE 5.0 |
Power
| Power Consumption | 22.5W (Including Bluetooth) |
| DC Jack Input | 12V |
Certification
| Country | Certification |
| USA | REACH Compliance |
| EU | RoHS Compliance |
