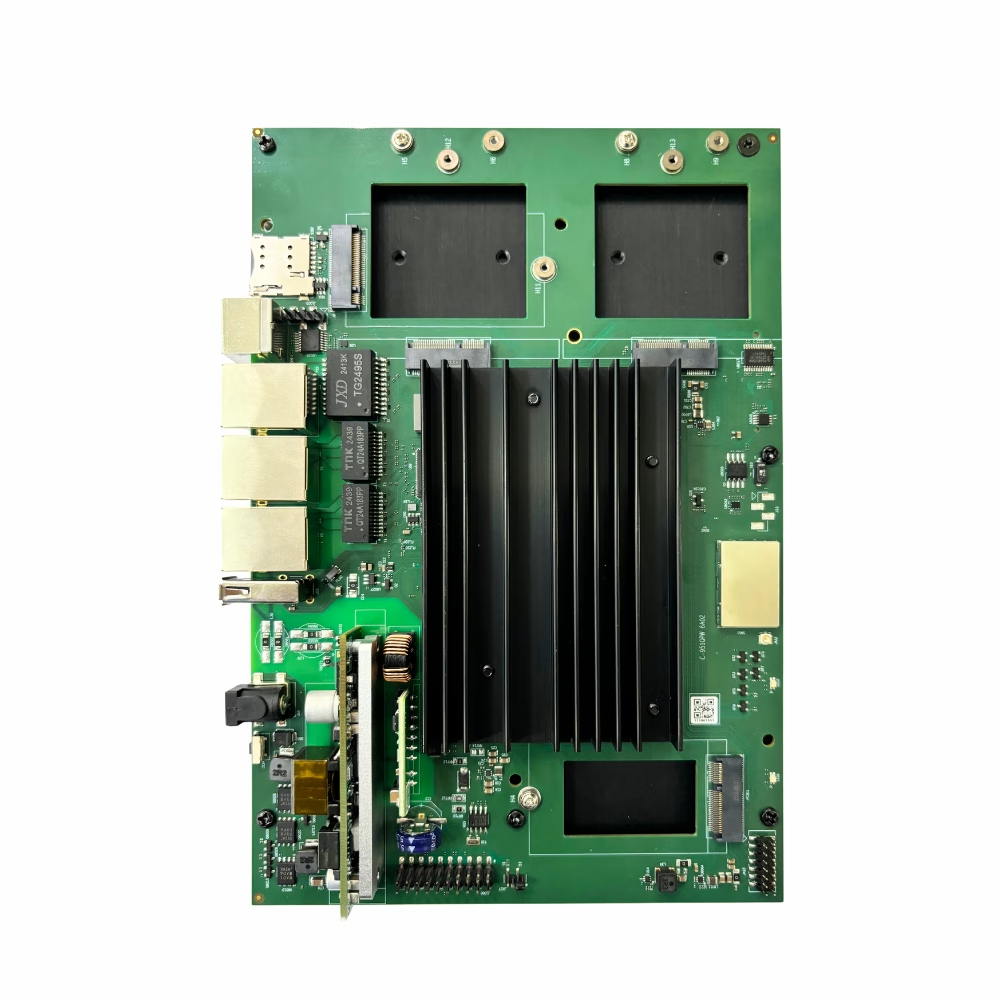

WPQ951

IPQ9550 WiFi 7 (802.11be) 4×4 MU-MIMO DBDC Embedded Board

• Qualcomm IPQ9550 Quad-Core ARM-A73 @ 1.5GHz processor ‘Alder’ Series
• 2GB (2x1GB), DDR4 32-bit (2×16-bit) interface
• 256MB NAND flash, 32MB NOR flash, 16GB eMMC
• 3x M.2 (NGFF) E Key Socket with PCIe 3.0
• 2x 2.5Gbps ethernet port, 1x 10Gbps ethernet port
• 1x USB 2.0 port
• -20ºC to 70ºC operating temperature
• 205mm x 140mm x 27.8mm (W x H x D)
