Ginger WSB530
¥1,000.00

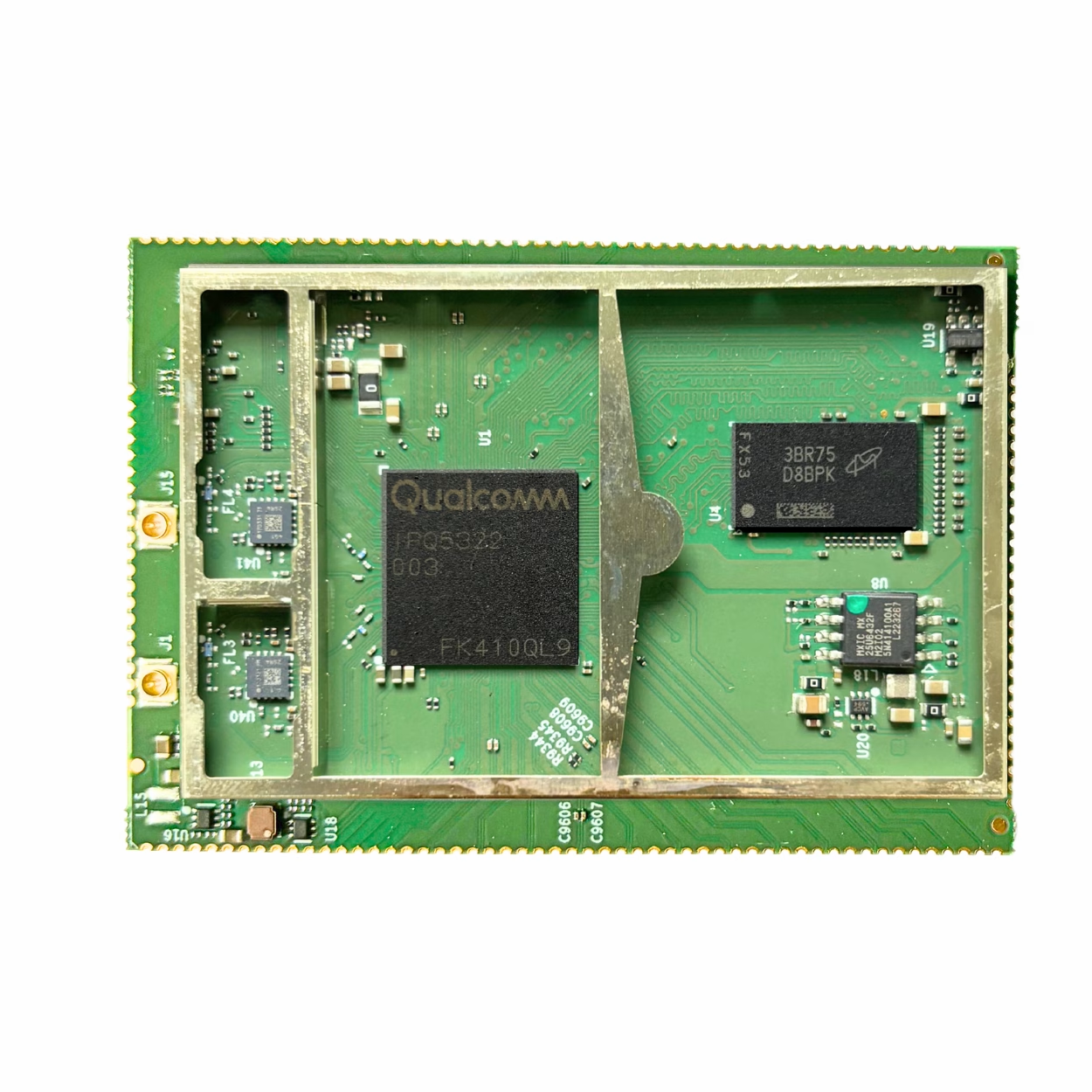

IPQ5322 WiFi 7 (802.11be) 2×2 MU-MIMO System on Module
- Qualcomm IPQ5322 Quad-Core Cortex-A53 1.5GHz processor ‘Miami’ series
- 1GB (Up to 3GB), DDR4 16-bit (1×16-bit) interface
- 16GB EMMC
- Available Interface:
33x GPIOs, 2x PCIe 3.0, 1x USB3.0 (or 1x USB2.0 + PCIe 3.0 Option), 3x BLSP ports for UART, I²C and SPI interfaces, 2x multi-GbE Ethernet SerDes supporting external 10G/5G/2.5G/1G PHYs - Support Wi-Fi 7 and 5G modules
- Ginger Development Kit (DVK) is available
- 65mm × 45mm × 7.4mm (W x H x D)
Description
Wireless
| Wireless | On-board 2×2 2.4GHz MU-MIMO 802.11b/g/n/ax/be, max 22dBm per chain 2x U.FL connectors (IPEX1) |
| 2.4GHz | 2×2 on-board 2.4GHz radio, up to 688Mbps physical data rate. |
| Frequency Range | 2.412~2.472GHz |
Interface
| Ethernet | 2x multi-GbE Ethernet SerDes supporting external 10G/5G/2.5G/1G PHYs |
| PCIe | 2x PCIe 3.0 |
| USB | 1x USB 3.0 (or 1x USB 2.0 + PCIe 3.0 option) |
| Serial Interfaces | 3x BLSP (UART, I2C and SPI configuration ports), 4x PWM |
| GPIOs | 33x GPIOs |
Power
| Power Consumption | TBD |
| DC Power | 3.3V, 5V, 12V |
Certification
| Country | Certification |
| USA | REACH Compliance |
| EU | RoHS Compliance |
