MMJ342
¥500.00

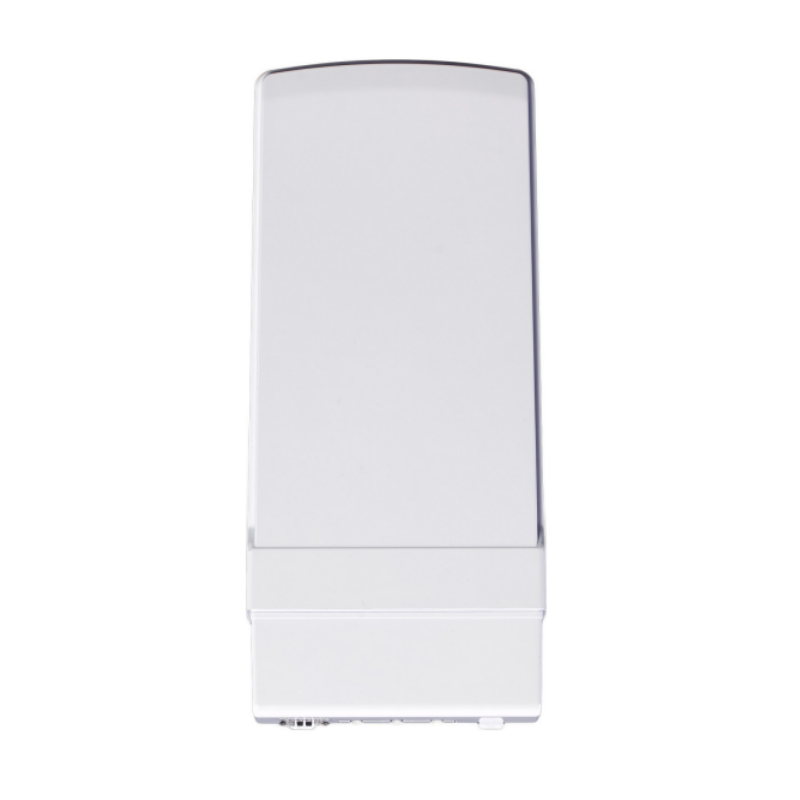

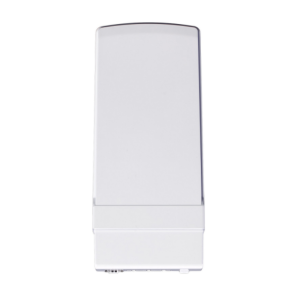

Single Band 2×2 MIMO 802.11a/n Long Range Outdoor Access Point
● Qualcomm Atheros 560MHz Processor AR9342
● IEEE 802.11a/n compliant
● 5GHz 26dBm aggregate powert
● Data rates of up to 300Mbps in 802.11n 40 MHz channels
● Antenna Alignment Site Survey – LEDs/Buzzer
● Distance Adjustment for long range transmission
● Built-in 17dBi 5GHz Dual-polarization antenna
● Weatherproof Casing
● 2 x RP-SMA Male Connector for External Antenna (optional)
● Support AP Mass Management Software via SNMP Protocol
参数规格
Chipset：CPU: Qualcomm Atheros AR9342 560MHz
System Memory：64MB DDR2
NOR Flash：16MB
Antenna：5GHz: Integrated 17dBi Dual-polarization antenna
Interface：2x Fast Ethernet Port (Auto MDI-X)
1x JTAG 14 Pin Connector1
1x Serial Port 4 Pin Connector
1x Serial Port 4 Pin Connector
Reset Button：Yes
LED：Indicators: Power LED, LAN Activity, 4x Signal Indicator
Power Over Ethernet (on LAN0)：Passive PoE 24V (LV version),
IEEE 802.3af/at or Passive PoE 36-56V (HV version)
IEEE 802.3af/at or Passive PoE 36-56V (HV version)
DC Power：No DC jack connector
Power Consumption：5W (Max)
Supported Operating System：CompexWRT or OpenWRT/LEDE
Certification：FCC and CE Certified, RoHS Compliance
Environment：Temperature: Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC
Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 90%
Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 90%
Enclosure Type：Weatherproof and IP53 Compliant
Dimensions：278.5 x 122.2 x 94.5 mm
Other Features：Surge Suppressor, Watchdog Timer
