WLE1216V5-20
¥500.00

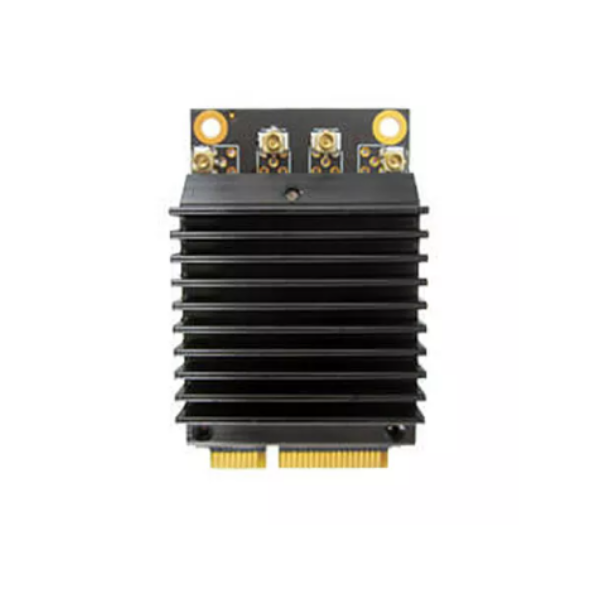

QCA9994 WiFi 5 (802.11ac Wave 2) 4×4 MU-MIMO Dual Band Module
● Qualcomm Atheros QCA9994 ‘Cascade’ series

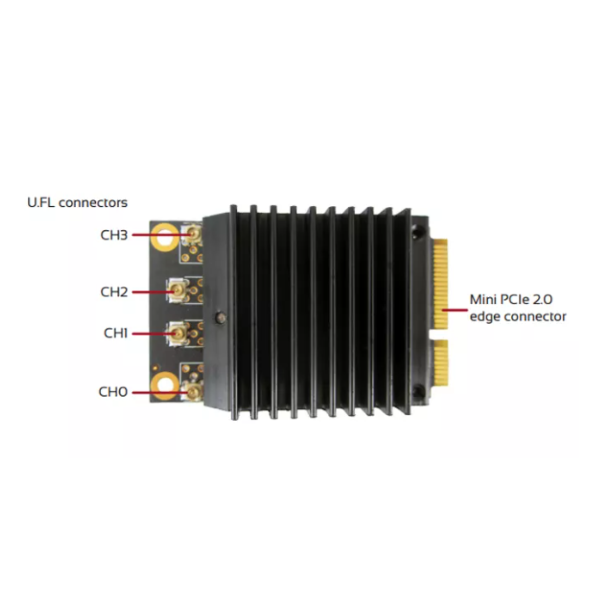

● Mini PCIe 2.0 WLAN host interface
● 4x U.FL connectors
● CCK, OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM of modulation techniques
● -40°C to 85°C operating temperature

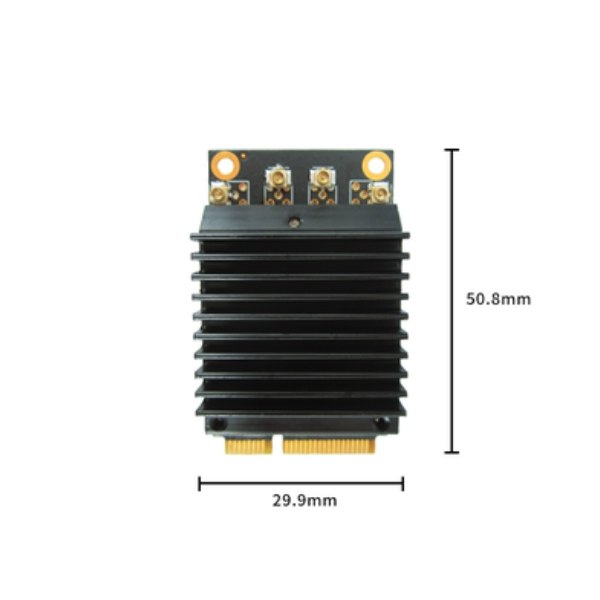

● 29.9mm x 50.8mm x 12.9mm (W x H x D)
Description
Wireless
| Wireless | 5GHz 802.11a/n/ac, max 20dBm per chain 4x U.FL connectors |
| 5GHz | 4×4 MU-MIMO Technology, up to 1733Mbps |
| WLAN Frequency Range | 5.150 ~ 5.825GHz |
| Channel Spectrum Widths for WLAN | Supports 20/40/80/80+80MHz at 5GHz |
Power
| Power Consumption | 8.5W (Max) |
| Operating Voltage | 3.3V |
Certification
| Country | Certification |
| USA | FCC, REACH Compliance |
| EU | CE RED, RoHS Compliance |
Wireless Specifications
| 5GHz | TX (dBm) | RX (dBm) |
| 6Mbps | 27 | -94 |
| 54Mbps | 23 | -77 |
| MCS 0 | 26 | – |
| MCS 7 | 23 | – |
| MCS 9 | 21 | – |
