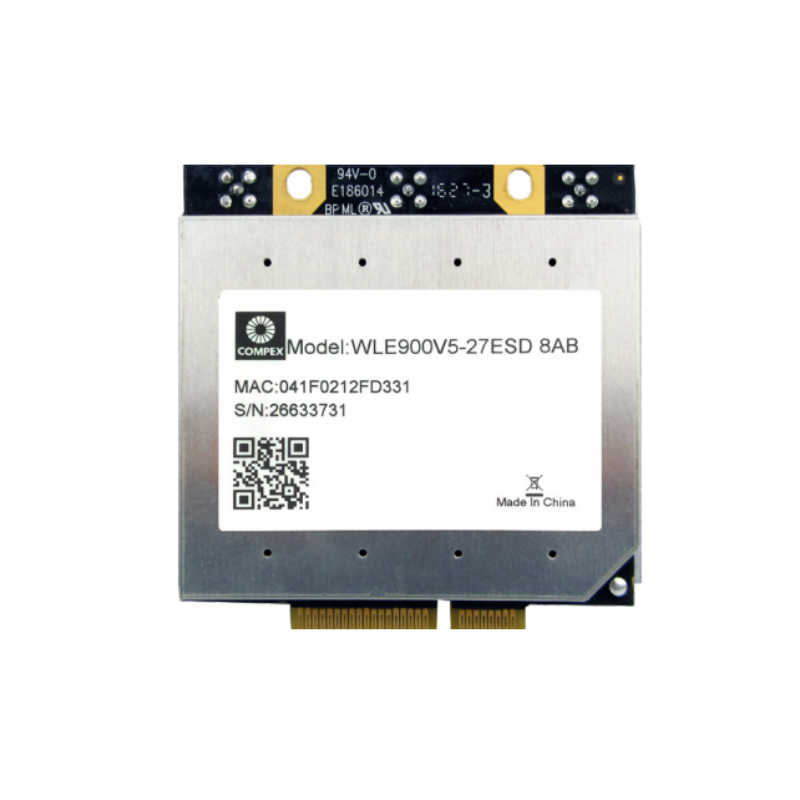

WLE900V5-27ESD
¥500.00
QCA9880 WiFi 5 (802.11ac Wave 1) 3×3 MIMO Single Band Module
- Qualcomm-Atheros QCA9880 ‘Peregrine’ series
- Mini PCIe 1.2 WLAN host interface

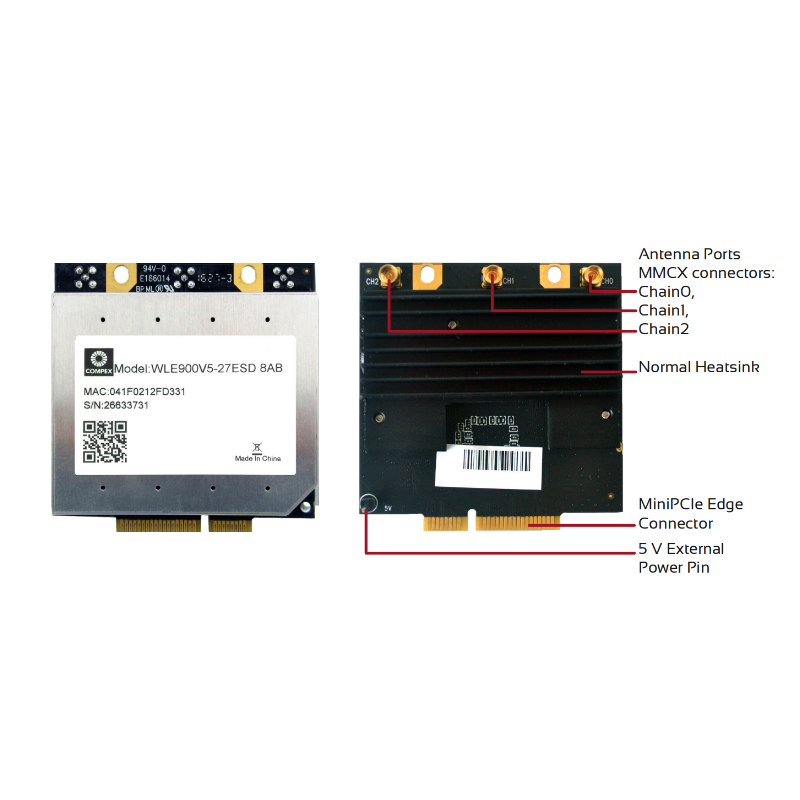

- 3x MMCX connectors
- BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM of modulation techniques
- -20°C to 70°C operating temperature

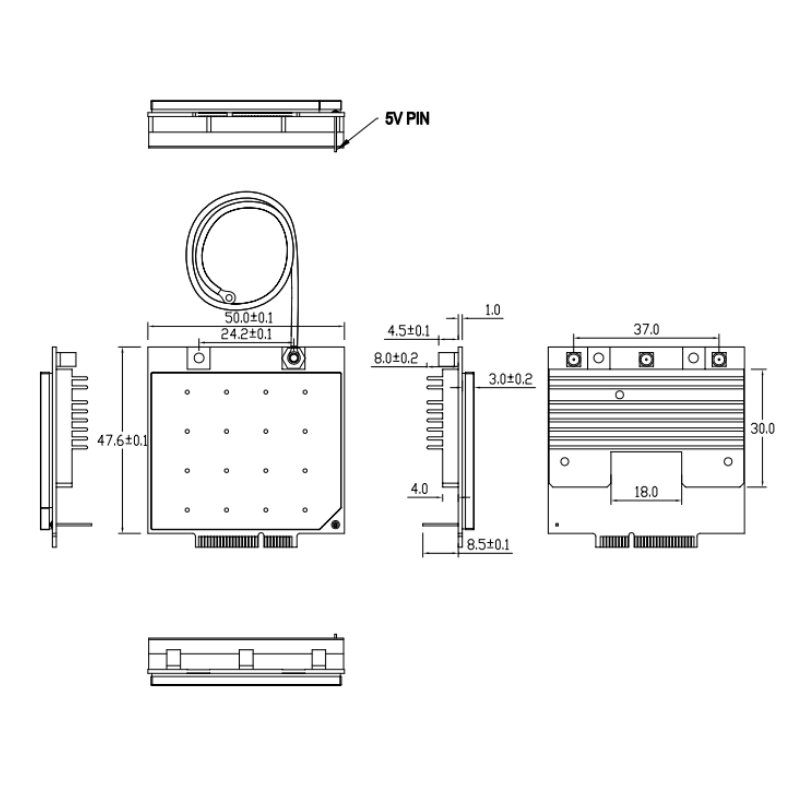

- 50.0 mm × 51.0 mm × 12.5 mm (W x H x D)
Description
Wireless
| Wireless | 5GHz 802.11a/n/ac, max 27dBm per chain 3x MMCX connectors |
| 5GHz | 3×3 MIMO Technology, up to 1300Mbps |
| WLAN Frequency Range | 5.150 ~ 5.825GHz |
| Channel Spectrum Widths for WLAN | Supports 20/40/80MHz at 5GHz |
Power
| Power Consumption | 10W (Max) |
| Operating Voltage | 3.3V, 5V |
Certification
| Country | Certification |
| USA | REACH Compliance |
| EU | CE RED, RoHS Compliance |
Wireless Specifications
| 5GHz | TX (dBm) | RX (dBm) |
| 6Mbps | 32 | -94 |
| 54Mbps | 28 | -80 |
| MCS 0 | 31 | -89 |
| MCS 7 | 26 | -72 |
| MCS 9 | 24 | -68 |
