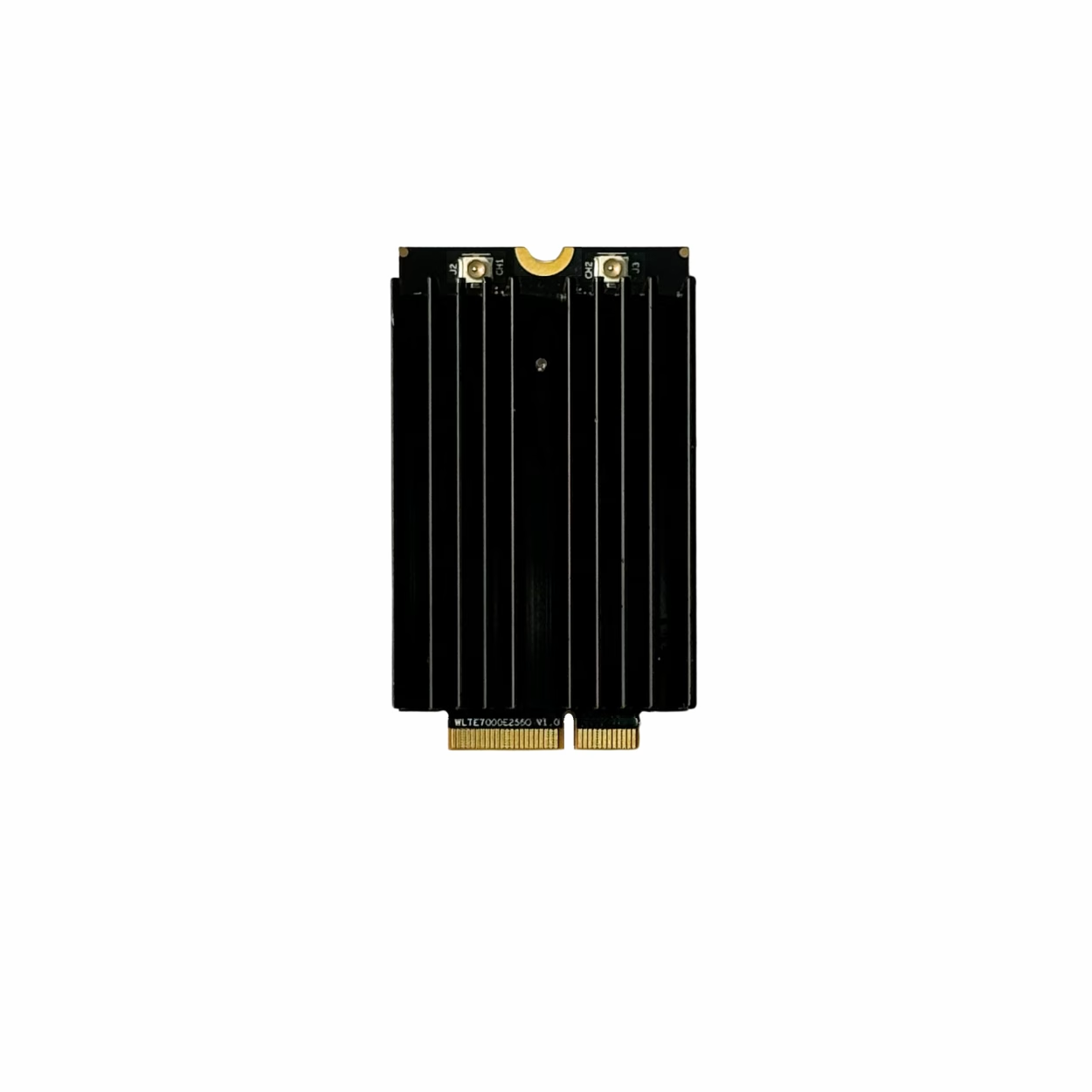

WLTE7002E56

Description

WLE7002E56 is a Dual-Band 5GHz + 6GHz WiFi 7 (802.11be) module. It is based on Qualcomm’s QCN6274, or QCN9274  ‘Waikiki’ series radio solution. This is a 2T2R (2×2) MU-MIMO 5GHz + 6GHz solution and is available in both commercial grade (QCN6274) and industrial grade (QCN9274).

WLTE7002E56 is capable of doing both AP and STA mode, in this case, doing backhaul and providing connectivity for clients at the same time. Built on a 3.3V design, the WLTE7002E56 ensures that the signal coverage is as wide as possible, in exchange for consuming slightly more power than a conventional Wi-Fi module. WLTE7002E56 is suitable for customers who require their product to provide wide signal coverage.

Supporting up to 4096-QAMs, WLTE7002E56 with its OFDMA feature is a perfect solution for Enterprise, Industrial, Cybersecurity, Transportation, and SMB applications or appliances. Multi-Link Operation (MLO) support reduces latency and helps to aggregate throughput, depending on device setup. Preamble puncturing supported by WLTE7002E56 improves spectral efficiency by allowing a Wi-Fi 7 access point (AP) to transmit a “punctured” portion of the spectrum channel if some of the channels are being used by legacy users. FIPS L2 is available as a feature uniquely on QCN9274, for customers who care most about the cryptographic protection of their product. Furthermore, with Compex acting as a value-added manufacturer, WLTE7002E56 is not restricted to working just on Qualcomm’s ecosystem, but also on 3rd party platforms such as Intel x86 and other ARM processors such as NXP and Marvell.

Standard

Wireless

Power

Environmental Compliances
