WPQ530

¥1,000.00

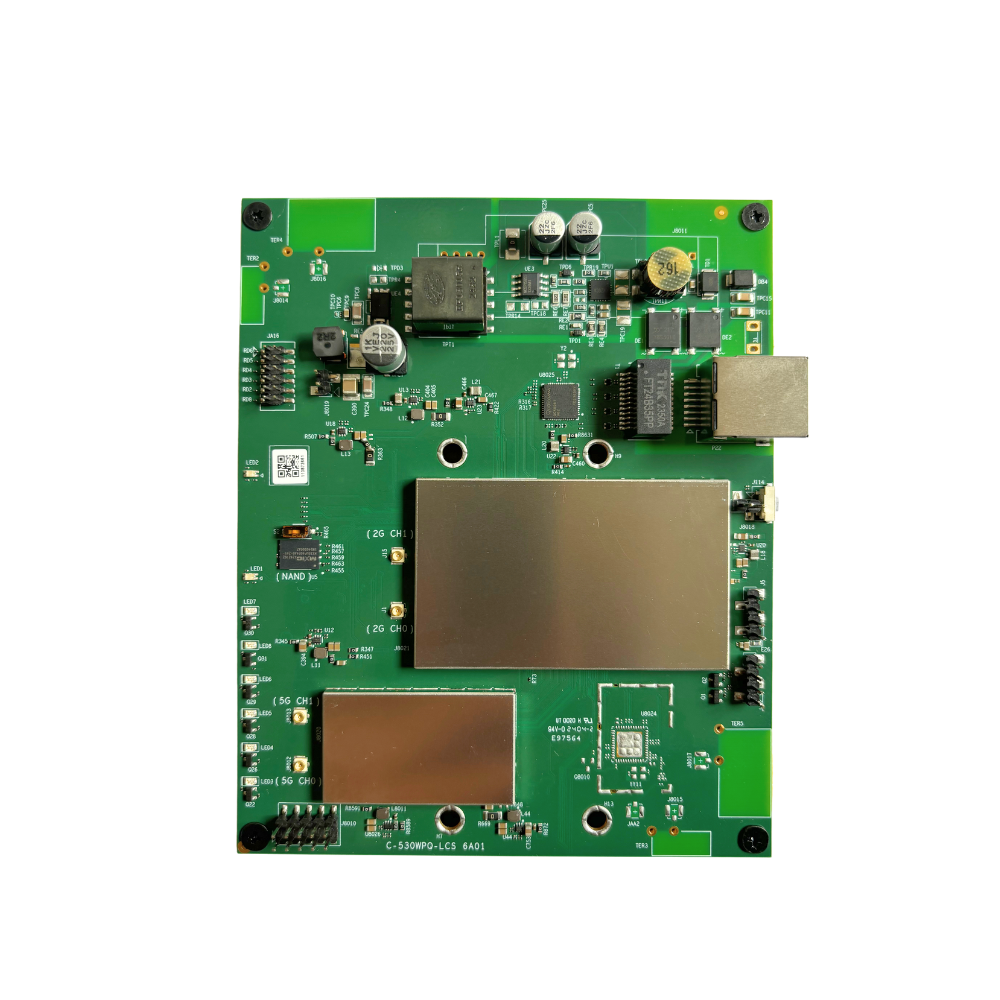

IPQ5322 WiFi 7 (802.11be) 2×2 MU-MIMO DBDC Embedded Board

Qualcomm IPQ5322 Quad-Core ARM-A53 @ 1.5GHz processor ‘Miami’ Series
1GB, DDR4 16-bit (1×16-bit) interface
512MB NAND flash, 8MB NOR flash
1x 2.5Gbps ethernet port
-20ºC to 70ºC operating temperature
135mm x 110mm x 20mm (W x H x D)

类别 802.11be 标签 WIFI 7 点击查看规格书

Description

Wireless

Wireless	On-board 2×2 2.4GHz MU-MIMO 802.11b/g/n/ax/be, max 24dBm per chain On-board 2×2 5-7GHz MU-MIMO 802.11a/n/ac/ax/be, max 19dBm per chain 4x U.FL connectors (IPQ5322)
2.4GHz	2×2 on-board 2.4GHz radio, up to 688Mbps physical data rate.
5-7GHz	2×2 on-board 5-7GHz radio, up to 5764Mbps physical data rate.
Frequency Range	2.412~2.472GHz 5.180~7.125Ghz

Power

Power Consumption (Board Only)	16W (Max)
DC Jack Input	N/A

Certification

Country	Certification
USA	REACH Compliance
EU	RoHS Compliance
