WPQ618
¥1,000.00

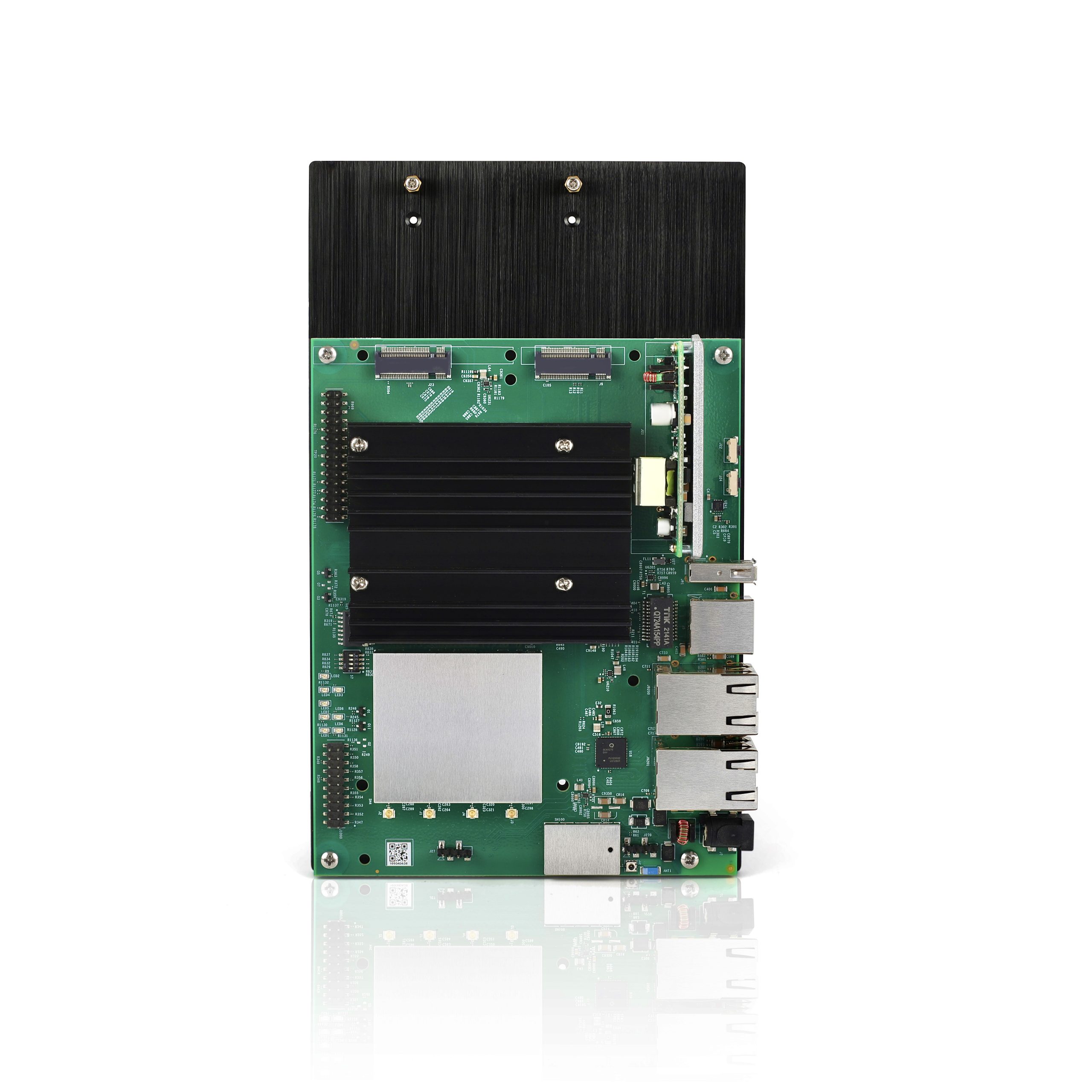

IPQ6018 WiFi 6 (802.11ax) 2×2 MU-MIMO DBDC Embedded Board
- Qualcomm Atheros IPQ6018 Quad-core ARM 64 bit A53 1.8GHz processor ‘Cypress’ series
- 1GB (2x 512MB) DDR3L 16-bit interface
- 256MB NAND flash, 32MB NOR flash
- 1x M.2 B Key Socket with PCIe 3.0, 1x M.2 B Key Socket with USB 3.0
- 1x 2.5Gbps ethernet port, 4x 1Gbps ethernet ports
- 1x USB 2.0 port, 4x SIM card slots, 1x SD card slot
- -20ºC to 70ºC operating temperature
- 128mm x 210mm x 33.9mm (W x H x D)
Description
Wireless
| Wireless | On-board 2×2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 20dBm per chain On-board 2×2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4x U.FL connectors |
| 2.4GHz | 2×2 on-board 2.4GHz radio, up to 573Mbps physical data rate |
| 5GHz | 2×2 on-board 5GHz radio, up to 1201Mbps physical data rate |
| Frequency Range | 2.412~2.472GHz, 5.150~5.825GHz |
Power
| Power Consumption | 17.5W (Max) (Including Bluetooth) |
| DC Jack Input | 12V |
Certification
| Country | Certification |
| USA | REACH Compliance |
| EU | RoHS Compliance |
