WPQ951
¥1,000.00

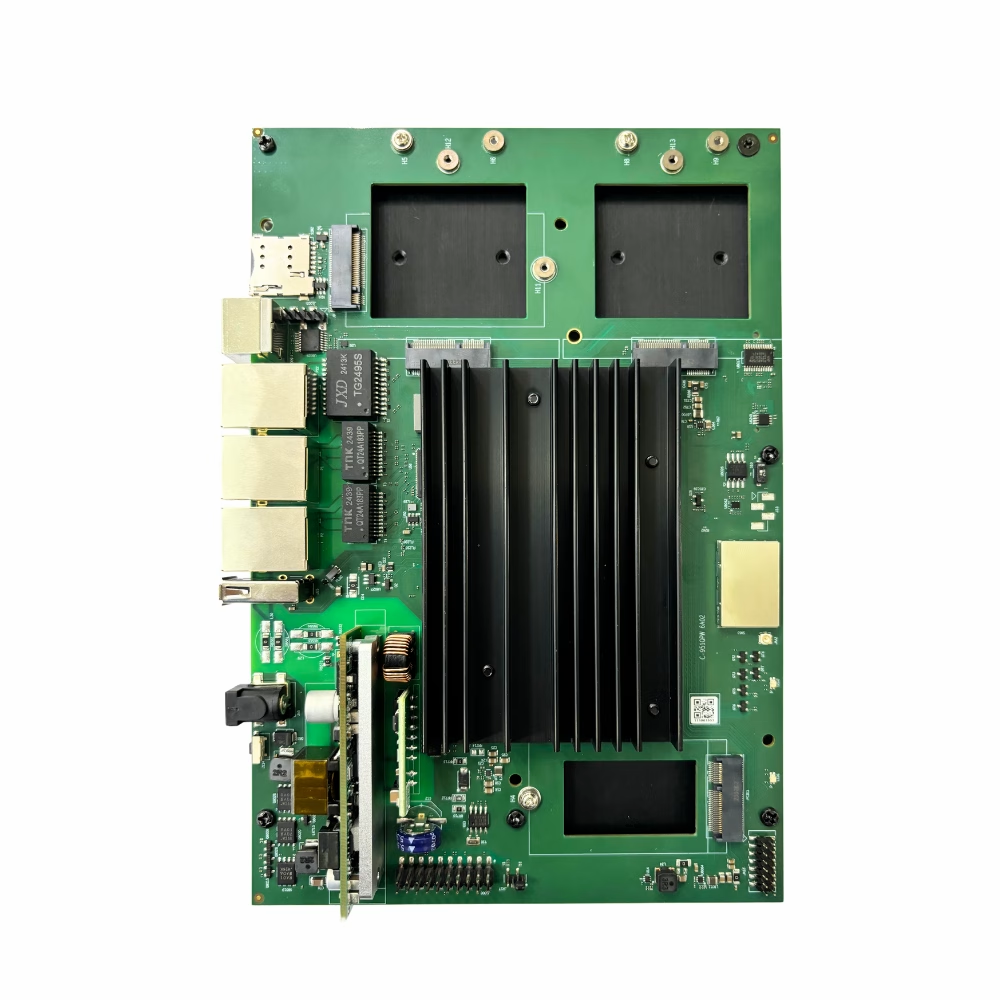

IPQ9550 WiFi 7 (802.11be) 4×4 MU-MIMO DBDC Embedded Board
- Qualcomm IPQ9550 Quad-Core ARM-A73 @ 1.5GHz processor ‘Alder’ Series
- 2GB (2x1GB), DDR4 32-bit (2×16-bit) interface
- 256MB NAND flash, 32MB NOR flash, 16GB eMMC
- 3x M.2 (NGFF) E Key Socket with PCIe 3.0
- 2x 2.5Gbps ethernet port, 1x 10Gbps ethernet port
- 1x USB 2.0 port
- -20ºC to 70ºC operating temperature
- 205mm x 140mm x 27.8mm (W x H x D)
Description
Wireless
| Wireless | No On-board Radio (IPQ9550) |
Power
| Power Consumption | 8.5W |
| DC Jack Input | 12V |
Certification
| Country | Certification |
| USA | REACH Compliance |
| EU | RoHS Compliance |
