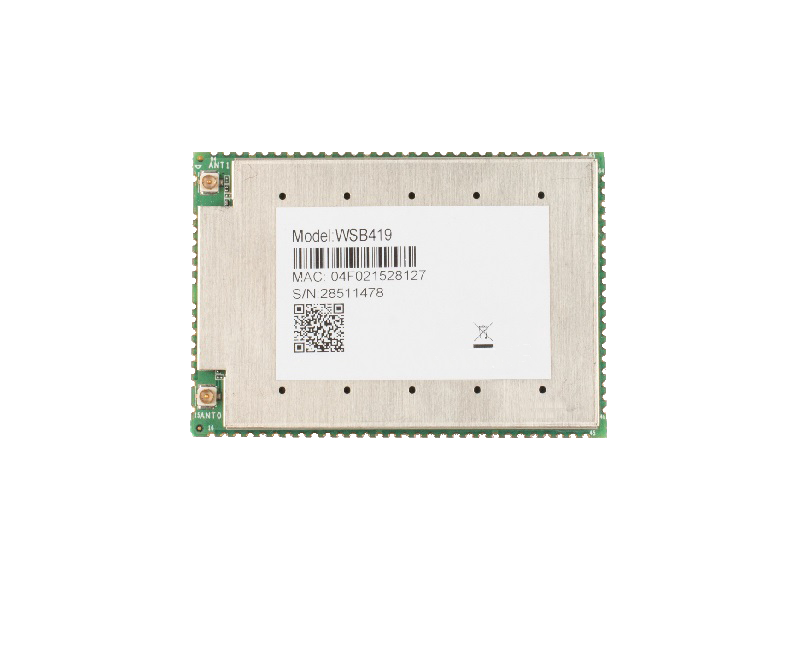

WSB419
¥1,000.00
IPQ4019 WiFi 5 (802.11ac) 2×2 MU-MIMO System on Module
- Qualcomm Atheros IPQ4019 Quad-core ARM Cortex-A7 710MHz processor ‘Dakota’ series
- 256MB (Up to 1GB)
- 128MB NAND flash, 16MB NOR flash
- Supports MiniPCIe v2.0
- Supports gigabit ethernet LAN/WAN
- Support USB 2.0, 3.0, and MicroSD card slot
- -20ºC to 70ºC operating temperature
- 40mm × 58mm × 4.4mm (W x H x D)
Description
Wireless
| Wireless | On-board 2×2 2.4GHz 802.11b/g/n, max 23dBm per chain On-board 2×2 5GHz 802.11a/n/ac, max 23dBm per chain 2x U.FL connectors, diplexer allows dual band concurrent operation |
| 2.4GHz | 2×2 on-board 2.4GHz radio, up to 400Mbps physical data rate |
| 5GHz | 2×2 on-board 5GHz radio, up to 867Mbps physical data rate |
| Frequency Range | 2.412~2.472GHz, 5.150~5.825GHz, simultaneous dual band |
Power
| Power Consumption (Board Only) | 12W (Max) |
Certification
| Country | Certification |
| USA | REACH Compliance |
| EU | RoHS Compliance |
Wireless Specifications
| 2.4GHz | TX (dBm) | RX (dBm) |
| 6Mbps | 26 | -96 |
| 54Mbps | 22 | -78 |
| MCS 0 | 26 | -92 |
| MCS 7 | 21 | -71 |
| 5GHz | TX (dBm) | RX (dBm) |
| 6Mbps | 26 | -93 |
| 54Mbps | 23 | -79 |
| MCS 0 | 25 | -86 |
| MCS 7 | 21 | -69 |
| MCS 9 | 19 | -66 |
